# Understanding Numpys Concatenate Axis Field

- Authors
- Name
- Yair Mark
- @yairmark

I have been getting a feel for the Numpy API by working through the Numpy exercises on HackerRank.

One thing that stumped me initially is trying to understand what the `axis`

parameter means with the numpy.concatenate function.

In the official documentation, it is described as:

The axis along which the arrays will be joined. If axis is None, arrays are flattened before use. Default is 0.

To better understand this I started by modifying the HackerRank concatenate exercise examples a bit (to make it clear what elements come from where) and outputing these examples:

```
array_1 = numpy.array([[1, 2, 3], [4, 5, 6]])
array_2 = numpy.array([[0, 0, 0], [7, 8, 9]])
print('array_1\n', array_1, '\n\narray_2\n', array_2)
```

This outputs:

```
array_1
[[1 2 3]
[4 5 6]]
array_2
[[0 0 0]
[7 8 9]]
```

For clarity the first array as a table would be:

1 | 2 | 3 |

4 | 5 | 6 |

The second array would be:

0 | 0 | 0 |

7 | 8 | 9 |

I then ran the following code:

```
print('axis = 0\n', numpy.concatenate((array_1, array_2), axis=0))
print('\n\naxis = 1\n', numpy.concatenate((array_1, array_2), axis=1))
```

This outpus:

```
axis = 0
[[1 2 3]
[4 5 6]
[0 0 0]
[7 8 9]]
axis = 1
[[1 2 3 0 0 0]
[4 5 6 7 8 9]]
```

I adjusted the example a bit:

```
array_1 = numpy.array([[1, 2, 3], [4, 5, 6], [7,8,9]])
array_2 = numpy.array([[0, 0, 0], [10, 11, 12], [13,14,15]])
print('array_1\n', array_1, '\n\narray_2\n', array_2, '\n')
print('axis = 0\n', numpy.concatenate((array_1, array_2), axis=0))
print('\n\naxis = 1\n', numpy.concatenate((array_1, array_2), axis=1))
```

Which outputs:

```
array_1
[[1 2 3]
[4 5 6]
[7 8 9]]
array_2
[[ 0 0 0]
[10 11 12]
[13 14 15]]
axis = 0
[[ 1 2 3]
[ 4 5 6]
[ 7 8 9]
[ 0 0 0]
[10 11 12]
[13 14 15]]
axis = 1
[[ 1 2 3 0 0 0]
[ 4 5 6 10 11 12]
[ 7 8 9 13 14 15]]
```

For a 2D array there are only 2 axes: `0`

and `1`

. For an ND array there are `n`

axes the first is `0`

the last is `n-1`

.

An easier way to think of the axes is as labels for different parts of the table. For example for a 2D array:

`0`

refers to the row side of the table i.e. where the rows start- When we use this in concatenate it says: "take the 2 tables and combine them along row side of the table."

`1`

refers to the column side of the table i.e. where the columns start- When we use this in concatenate it says: "take the 2 tables and combine them along column side of the table."

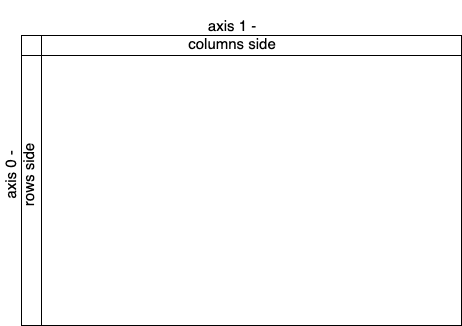

To illustrate this I have created a simple diagram below:

This article goes into Numpy axes in much more detail.
